Diesel City Bus Series

8-12 Meters City Bus

Add to Inquiry Basket

Product Features
Technical Specification
Downloads
Make an Inquiry

Product Features

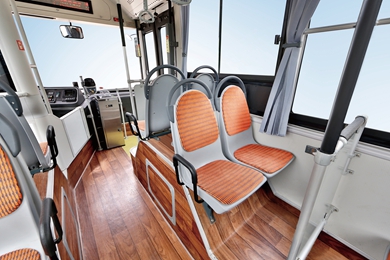

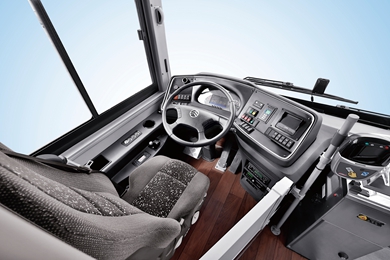

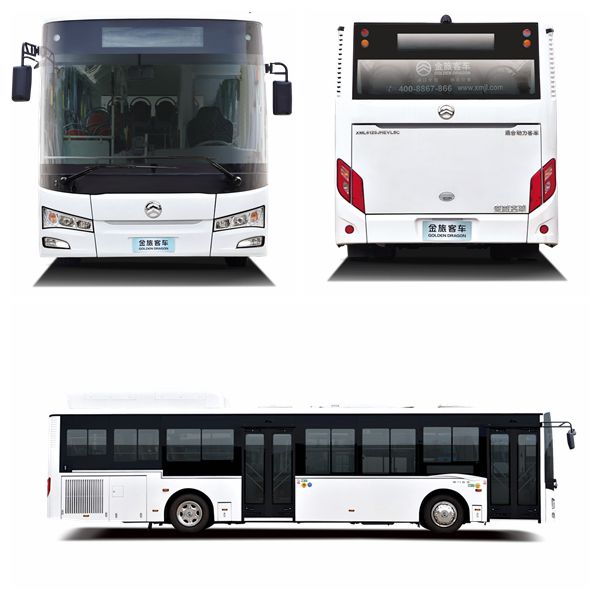

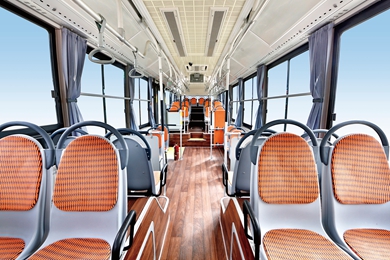

The Brand New Appearance

STREAMER

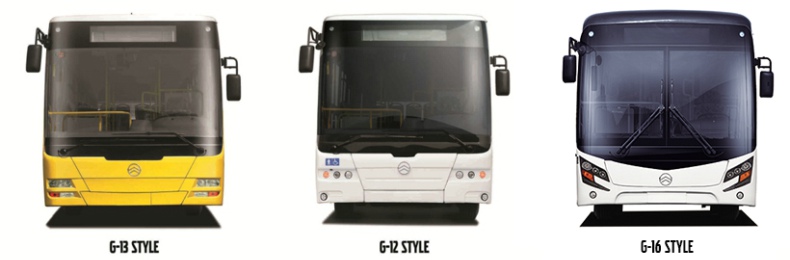

Other Exterior Option

Technical Specification

Model: 12 Meters Citybus 11 Meters Citybus 10 Meters Citybus 8 Meters Citybus

Dimension（mm）	11980×2540×3180
Wheelbase (mm)	5980
Angle of Approach / Departure(°)	8°/8°
Fornt / Rear Overhang (mm)	2650/3350
Gross Weight (KG)	18000
Max.Passenger Capacity	Up to 36(95)
Transmission	5 MT
Suspension System	Leaf Spring Suspension(options:Air Suspension)
Brake System	Front/Rear Drum Type(options:Disc Type)
Front/Rear Axle	6.5T/13T

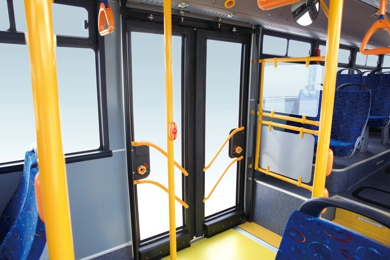

Door Arrangement	Front Door and Central Door

Dimension（mm）	11380×2540×3180
Wheelbase (mm)	5700
Angle of Approach / Departure(°)	7°/7°
Fornt / Rear Overhang (mm)	2420/3260
Gross Weight (KG)	17000
Max.Passenger Capacity	Up to 34(83)
Transmission	5 MT
Suspension System	Leaf Spring Suspension(options:Air Suspension)
Brake System	Front/Rear Drum Type(options:Disc Type)
Front/Rear Axle	5.5T/11T
Door Arrangement	Front Door and Central Door

Dimension（mm）	10480×2500×3200
Wheelbase (mm)	5000
Angle of Approach / Departure(°)	8°/7°
Fornt / Rear Overhang (mm)	2310/3170
Gross Weight (KG)	16500
Max.Passenger Capacity	Up to 32(83)
Transmission	5 MT
Suspension System	Leaf Spring Suspension(options:Air Suspension)
Brake System	Front/Rear Drum Type(options:Disc Type)
Front/Rear Axle	5.5T/11T
Door Arrangement	Front Door and Central Door

Dimension（mm）	8390×2460×3120
Wheelbase (mm)	4000
Angle of Approach / Departure(°)	9°/8°
Fornt / Rear Overhang (mm)	1910/2480
Gross Weight (KG)	11900
Max.Passenger Capacity	Up to 21(55)
Transmission	5 MT
Suspension System	Leaf Spring Suspension
Brake System	Front/Rear Drum Type(options:Disc Type)
Front/Rear Axle	4.2T/8T
Door Arrangement	Front Door and Central Door

Downloads

Below you can find links to more features, facts and figures.

City Bus Series(PDF, 1.48Mb)

Technical Specification(PDF, 824.65Kb)
