Kast Series

6-7.7 Meter Mini Bus

Add to Inquiry Basket

Product Features
Technical Specification
Downloads
Make an Inquiry

Product Features

Technical Specification

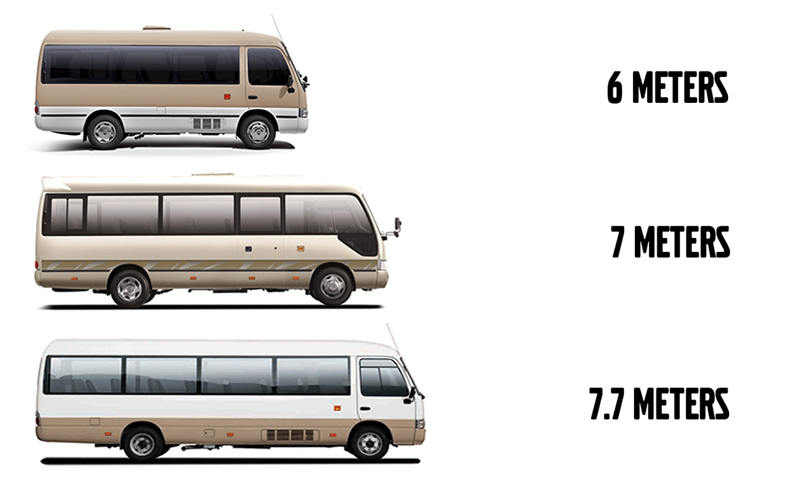

Model: 6 Meters Mini Bus 7 Meters Mini Bus 7.7 Meters Mini Bus

Dimension（mm）	5990×2050×2680
Wheelbase (mm)	3300
Angle of Approach / Departure(°)	16°/10°
Fornt / Rear Overhang	1135/1555
Curb Weight（kg）	5400
	YC4D130-20 /3TZ-163（Gasoline）
Transmission	5 MT
Suspension System	Leaf Spring Suspension
Front/Rear Axle	2.8T/5T
Brake System	Front/Rear Drum Type(Options:Disc Type,Retarder)
Door Arrangement	Central Door(Options: Rear double door)
Rated Seat Capacity	Up to 22

Dimension（mm）	6970×2050×2640
Wheelbase (mm)	3935
Angle of Approach / Departure(°)	18°/14°
Fornt / Rear Overhang	1135/1900
Curb Weight（kg）	7300
	YC4D130-20/EQB125-20/ISF3．8s3141/CY4102BZLQ/3TZ-163（Gasoline）
Transmission	5 MT
Suspension System	Leaf Spring Suspension
Front/Rear Axle	2.8T/5T
Brake System	Front Drum(Options:Disc Type)/Rear Drum Type(Options:Retarder)
Door Arrangement	Central Door(Options: Rear double door)
Rated Seat Capacity	Up to 27

Dimension（mm）	7730×2050×2730
Wheelbase (mm)	4435
Angle of Approach / Departure(°)	18°/14°
Fornt / Rear Overhang	1150/2145
Curb Weight（kg）	7300
	YC4D140-20/ISF3．8s5141/EQB125-20
Transmission	5 MT
Suspension System	Leaf Spring Suspension
Front/Rear Axle	2.8T/5T
Brake System	Front/Rear Drum Type(Options:Disc Type,Retarder)
Door Arrangement	Central Door(Options: Rear double door)
Rated Seat Capacity	Up to 31

Downloads

Below you can find links to more features, facts and figures.

Kast Series(PDF, 1.62Mb)

Technical Specification(PDF, 725.03Kb)
